Connect Control Panel 10. Connect the wires coming from floats to the terminals in the control panel. Refer to the appropriate Float Arrangement diagram for the correct terminal connections. 11. Connect the wires coming from the pump(s) to the pump terminals. Refer to the panel wiring diagram for the correct terminal connections. 12. Orenco designs and manufactures control and monitoring products, primarily for pump and flow-control applications. Orenco Controls has thousands of control panels installed worldwide. We provide our clients with a custom-engineered, plug-and-play package that's pre-programmed and easy to use.

Orenco Systems Control Panel Wiring Diagram from i.pinimg.com Print the electrical wiring diagram off and use highlighters in order to trace the signal. When you employ your finger or perhaps stick to the circuit along with your eyes, it may be easy to mistrace the circuit. 1 trick that We use is to print out exactly the same wiring diagram off ...

Orenco systems control panel wiring diagram

Additionally, each Orenco control panel comes with panel-specific information and instructions on wiring, timer settings, and operating instructions . Please read all other documents included with the control panel, as well . Jun 09, 2020 · DOWNLOAD. Wiring Diagram Sheets Detail: Name: orenco systems control panel wiring diagram – Code Alarm Installation Manual Wiring Diagram Lovely Tamarack Car Alarm Wiring Diagram Excalibur Car Alarm Wiring. File Type: JPG. Source: firedupforkids.org. Size: 294.60 KB. Dimension: 882 x 591. Sep 15, 2019 · Orenco Systems Wiring Diagram – wiring diagram is a simplified within acceptable limits pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the facility and signal contacts amongst the devices. A wiring diagram usually gives information more or less the relative slant and treaty ...

Orenco systems control panel wiring diagram. Mar 01, 2019 · Orenco Systems Control Panel Wiring Diagram. Variety of orenco systems control panel wiring diagram. A wiring diagram is a streamlined conventional photographic depiction of an electric circuit. It reveals the components of the circuit as streamlined shapes, and also the power and also signal connections in between the devices. A wiring diagram typically offers info concerning… Chris shows the proper way to wire an Orenco S series control panel purchased AFTER 04/01/2018Find the wiring diagrams on our website here: https://www.rcwor... Splice Box Model. SB4 Orenco's Most Versatile Panel (MVP) line of control panels includes an easy-to- use. Install the electrical splice box (es) for the floats and pump (s) before installing the actual floats panel wiring diagram for the correct terminal connections. If you have any questions please contact Orenco Systems, Inc. Lennox Furnace thermostat Wiring Diagram Gallery. lennox furnace thermostat wiring diagram - A Novice s Guide to Circuit Diagrams A first look at a circuit diagram could be confusing, however if you can read a subway map, you could review schematics. The objective is the exact same: obtaining from factor A to point B. Literally, a…

Route all wires and cords between the components, splice box(es), control panel(s), and service panels. • Use the schematics and wiring diagrams included with the panel for specifics. • Use only CU conductors, 60° C (140° F) minimum, rated for wet locations. • Be sure to pull enough wire or cable into the splice box(es) (6-8 inches or 150- AX Treatment Systems; Control Panels. Standard Control Panels ... Vaults and Packages Control Panels Pumps Effluent Filters Access Risers Access Lids Basins Float Switches and Assemblies Alarm Panels Wiring Connectors and Splice Boxes Unions and Valves Miscellaneous Products (800) 348-9843 +1 (541) 459-4449. About Us. Since 1981, Orenco Systems ... Well Septic Systems Diagnostics Monticello Pump Services. Wiring diagram septic tank control full pump alarm meyer sewer grinder indoor high water submersible sewage american manufacturing company s duplex pumps aerobic system faqs q a on panels effluent how systems work king county pressure distribution tran t2 panel sim single phase simplex sump of car float switch installation well ... Electrical panel wiring diagrams are used to outline each device, as well as the connection between the devices found within an electrical panel. As electrical panels are what will contain control systems, panel wiring diagrams are commonly encountered by PLC technicians and engineers. Although electrical panels may not be overly complex from the first glance, a lot of engineering goes into ...

Panel Wiring Diagram EIN-CP-OP-53. Float Arrangement Diagram EIN-CP-SET-144. MVP-S PT RO Operation EIN-CP-SET-1115. ... If you have any questions please contact Orenco Systems, Inc. Figure 1. Recommended Breaker & Wire SizePump Motor Size Breaker size Wire Size Max Distance* 120 VAC 1/2 hp 20 amp 10 AWG 105 ft 240 VAC 1/2 hp 15 amp 14 AWG 161 ... Orenco Systems Control Panel Wiring Diagram from i.pinimg.com To properly read a cabling diagram, one has to find out how typically the components within the system operate. For instance , if a module will be powered up and it sends out a signal of 50 percent the voltage plus the technician will not know this, he'd think he offers an issue, as ... Orenco A Series Simplex Control Panel Technical Details. Hand-Off-Auto Switch. 10A Control Breaker (Requires 120 VAC control power) 10A (115V) or 16A (230V) Panel Rating. Audible Alarm: 95 dB at 24", Warble Tone Sound. Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light. Thank you for account orenco duplex control panel wiring diagram.Kindly say, the orenco duplex control panel wiring diagram is universally accordant with any accessories to read..Control and Alarm Panels.General Installation and Wiring Instructions. Before beginning, apprehend these instructions and accomplish abiding they are the best accepted • Use the schematics and wiring diagrams ...

Alarms Controls And Monitor Systems Onsite Installer

Installation Manual. 1-800-348-9843 +1-541-459-4449. www.orenco.com. AdvanTex ® AX20 Treatment Systems. Residential Applications

Thesepticstore Com

Chris shows the proper way to wire an Orenco A series control panel.Find the wiring diagrams on our website here: https://www.rcworst.com/Orenco-A-Series-Sim...

Product Focus March 2020 Onsite Installer

Simplex S series pump control panels are ideal for pressure sewer or onsite Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-SDuplex Waterproof Control Panels For Wastewater Pumps. Duplex waterproof control panels with hand-off-auto switches, running lights, (H-O-A) elapse time meters for each pump plus a visual flashing high water ...

Thesepticstore Com

VeriComm Control Panel VCOM-S1 RO Manual# EIN-CP-S-656 This Manual Contains: Description Document Number 1. VCOM Panel Installation Instructions EIN-CP-GEN-4 2. Panel Wiring Diagram EDW-WD-S-148 3. Float Arrangement & Splice Box Wiring Diagram EDW-FS-S-1 4. VCOM-S RO Operation EIN-CP-OP-498

Orenco S Series Simplex Off The Shelf Control Panel

Orenco Systems Control Panel Wiring Diagram. Print the electrical wiring diagram off plus use highlighters to trace the signal. When you use your finger or the actual circuit along with your eyes, it's easy to mistrace the circuit. A single trick that I actually use is to print the same wiring picture off twice.

Covb Org

1988 Ford F250 Wiring Diagram from www.chanish.org. Print the wiring diagram off in addition to use highlighters in order to trace the signal. When you employ your finger or stick to the circuit along with your eyes, it's easy to mistrace the circuit. One trick that I actually 2 to print out the same wiring picture off twice.

How To Wire An Orenco A Series Control Panel Youtube

Apr 02, 2018 · Orenco Systems Control Panel Wiring Diagram Gallery. orenco systems control panel wiring diagram - Building wiring layouts show the approximate locations and also interconnections of receptacles, lighting, and also permanent electric solutions in a building. Adjoining wire courses could be revealed roughly, where certain receptacles or fixtures need to be on an usual circuit. Circuitry ...

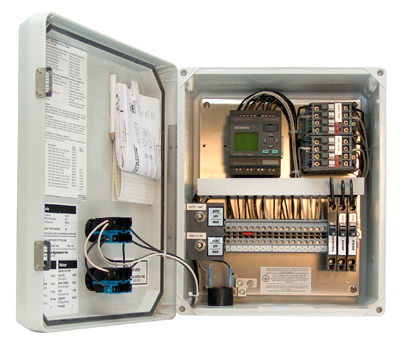

Mvp Ssf Control Panels
