Posted: Thu Oct 25, 2018 9:03 am Post subject: Farmall H Carburetor Initial Settings: Does this sound good for a 1949 Farmall H Carburetor Initial Settings Set Fuel Adjusting Screw 3 turns off of seat Set Idle Adjusting Screw 1 turn off of seat Set Throttle Stop Screw 1.5 turns Open I know where the Fuel and Idle screws are, but where is the Throttle Stop screw? INTERNATIONAL- MODEL H FARMALL . In 1989 the Model HFannall celebrated its 50th birthday. Iriternational fIrst introduced the new styled IHe tractor in 1939 and manufactured over .'10,000 of them that year. It was to be the third in the series of A, B,H, and M Farmalls brought to market that year. The Model H was to replace the F-20.

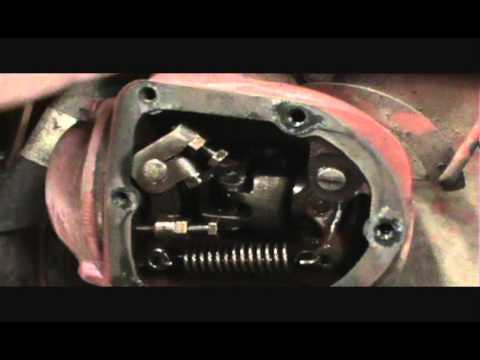

This is a quick rundown on how to set up the governor on a Farmall H or McCormick W4 tractor.Before we set the governor up you are going to want to make sure...

Farmall h carburetor diagram

Farmall h carburetor diagram thanks for visiting our site this is images about farmall h carburetor diagram posted by brenda botha in farmall category on sep 11 2019. Premium carburetor repair kit carburetor new zenith universal replacement economy carburetor repair kit ih carbs complete ih carburetor repair kit basic carburetor repair kit ih carb. International Harvester / Farmall H Rebuilt Carburetor for sale, 1412-CARB. This rebuilt carburetor is a direct replacement for OEM numbers matching: 50981DC, 45108DD. For the following tractor models: H. Add $125.00 core charge to price (will be added after order is placed when ordering online) - you will receive instructions for returning your core for a refund if you have one available. for ... Carburetor for Farmall H …(casting #) * Replace your IH / Farmall H carburetor with our new IHC replacement and make your tractor run like new!* Our IHS3383 fits Farmall H and W4 series tractors and is made exactly like the original; all the original parts interchange.* This new Farmall carburetor will fit like a glove to…

Farmall h carburetor diagram. Premium Carburetor Repair Kit. International / Farmall - Fits: all with carburetor # 358065R91 or 358554R91: Super H, Super HV, Super W4; Replaces: drain cock: 134519, strainer screen retainer gasket: 18377D, throttle stop screw: 186566, idle adjusting spring: 24685D, fuel adjusting screw packing nut: 24687DA, idle adjusting…. Our rebuilt Farmall H carburetors replace 45108DB, 50981DC. If you get this carb and do not like it, you can return it within 30 days. If it comes into contact with fuel, it becomes NOT RETURNABLE. If for any reason, this carb smells like fuel, it is NOT Returnable. IF YOU DECIDE TO USE THIS CARB, FLUSH OUT THE ENTIRE FUEL SYSTEM. Farmall Carburetor, New - Zenith carburetor outperforms the original carburetor used on: 1974 to 1979 Cub and Cub Lo-Boy using C60 gas engine, serial number 312390 and up and 184, 185. Carburetor numbers 70949C91, 70949C92, 71523C93, 13781, 13794. Will fit carburetor numbers 251234R91, 251234R92, 251234R93, 251234R94, 364579R91, and 63349C91 w\ IH on the bowl on tractors serial number 312390 ... On any carburetor with the floats either being flat on top or having a horizontal seam line the way it was assembled the flat top or seam line should be parallel with the bowl surface. It's kind of an old timers rule of thumb a quick way to set the float height and then check the float drop. ... Farmall H, HV, Super H, 300 & 350 Farmall, IH ...

Rachel demonstrates how to rebuild a carburetor on a Farmall H tractor. This same carburetor is found on Farmall W-4, I-4 and O-4 tractors.Parts are availabl... Case IH Farmall H Parts Catalogs & Information. Extensive diagrams and resources for Case IH equipment Parts Hotline 877-260-3528 Contact us today! 1950 Farmall H originally purchased new by Joe Snodgrass of Pocahontas, Arkansas, and restored in 1998 by his grandson, T.W. Cook in Georgetown, Texas. I decided to put this site together to try to collect information to encourage others to restore their own Farmall H. Farmall H Wiring Diagram - 1943 farmall h wiring diagram, 1950 farmall h wiring diagram, farmall h alternator wiring diagram, Every electrical arrangement is composed of various different parts. Each part should be placed and linked to other parts in specific manner. Otherwise, the structure won't work as it should be.

Farmall H Carburetor Kit found in: Complete IH Carburetor Repair Kit, Premium Carburetor Repair Kit, Basic Carburetor Repair Kit (IH Carb), Economy Carburetor Repair Kit (IH Carbs), Carburetor Gasket Kit, Fds212.pdf, Economy.. ... instruction sheet and diagram may depict parts that are not included in this kit.Fits the listed Marvel Schebler ... 2 Posts. Discussion Starter · #1 · Jul 17, 2012. Can anyone give a new Farmall owner some general guidelines on setting the carb adjustments on a 1940 ";H"? The machine is new to me and the float/needle valve is letting too much gas through. (the carb drips gas when the machine is not running...the last owner used a vice grips on the gas line ... ORIGINAL H-HV FARMALL TRACTOR WORKING ENGINE CARBURETOR IHC H-W4 This is the working carburetor off of an";H" Farmall tractor that we're parting out(See pictures of the tractor also) It should fit Farmall H-W4-HV. Tag no. 50981. This 1951 H Farmall was sitting running when I took pictures of it. COMPLETE CARBURETOR REBUILD KIT & FLOAT IH FARMALL H HV I4 O4 W4 TRACTOR IH CARB. $58.99. $5.95 shipping.

WFLNHB Carburetor Repair Rebuild Kit Fit for Farmall H O4 W4 Tractor High Class Quality Rebuild Kit. 3.9 out of 5 stars. 11. $10.89. $10. . 89. Get it as soon as Fri, Nov 5. FREE Shipping on orders over $25 shipped by Amazon.

Discussion Starter · #1 · Apr 30, 2015. Every year the same thing. The carb on my Farmall H overflows with gas. It won't start. I pay someone to come "look at it". He takes it apart puts it back together and starts right up. Last year I thought I would get smart and have it rebuilt at a local implement dealer. Worked great most of last year.

Farmall H Carburetor Diagram. High speed idle (load screw) is 3 turns out from being seated. Low speed idle is 1 1/2 turns out. ALL H carburetors are the same. Farmall H Carburator Diagram found in: Premium Carburetor Repair Kit, Economy Carburetor Repair Kit, Marvel Schebler, IH Industrial - Fits: I4 International.

Carburetor kit for IH Farmall H W4 O4 includes gaskets, float valve, throttle shaft, choke shaft and plate, jetting and some small parts. Solex 26VBN carburetor kit. Our Price: $49.95. Premium farmall m carburetor kit. Our Price: $55.47. carburetor kit for IH diesel starting carburetor.

FARMALL H THROTTLE PLATE. More details. ex Shipping. FARMALL SUPER H CARB KIT. More details. More details. ex Shipping. FARMALL M & W6 CARB KIT. More details. ex Shipping. FARMALL SUPER M, MTA CARB KIT. More details. ex Shipping. FARMALL 300, 350, 400, 450 CARB KIT. More details. ex Shipping.

Farmall H Carburetor Float found in: Carburetor Float, Basic Carburetor Repair Kit (IH Carb), Viton Needle Float Valve (For IHC Carburetors), Premium Carburetor Repair Kit, Carburetor Float, Marvel Schebler, Viton Needle Float.. ... instruction sheet and diagram may depict parts that are not included in this kit.Fits the listed Marvel Schebler ...

How to properly adjust your carburetor on a Farmall tractor. How to fix a very old gas tractor. How to fix a very old tractor. #FarmallFanatic #farmall

Farmall 460 & up Farmall H, Super H # Farmall M - 450 Example: This is a # TSX159 Example: This is a #10697 Late Zenith 'ILL, 06 CARTER . Title: Carburetor Number Location Diagram Author: Steiner Tractor Parts Subject: Carburetor Number Location Keywords "Carburetor, Number, Location, Diagram, steiner tractor parts, new parts for old tractors," ...

My Farmall has a flaw in the carburetor. This video shows me trying to fix it.

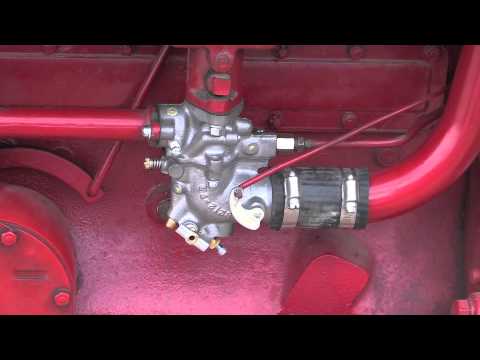

This video has tips for adjusting the carburetor on a Farmall H. There are two main screws you'll be adjusting to properly setup your carburetor as well as s...
