8 Dec 2015 — Generally, grab bars are installed 33-to-36 inches from the shower floor. The height, position and location of the bar can be adjusted for ... Save up to 70% off Safety Handicap Bathroom Accessories, Emergency Call Buttons, Pull Cords, Non-Slip Bath Mats, Toilet Safety Rails, Grab Bars, ...

Steps To Install Grab Bars On A Tiled Wall. Measure where the best location(s) would be for the grab bar(s0 that you are installing. Again, this depends on the person who will be using them. This video goes into detail on how to best center and mark the placement of the grab bar.

Shower grab bar placement diagram

Save up to 70% off Safety Handicap Bathroom Accessories, Emergency Call Buttons, Pull Cords, Non-Slip Bath Mats, Toilet Safety Rails, Grab Bars, Bathroom Safety Railing and more. Integrated Support Rail with Invisia Accent Ring stylish support rail ideal for providing additional support and stability for users with arthritis. It makes sense to install more than one grab bar in a shower stall if there is space. A short one (as short as 9 inches) at the entrance and a longer one on the back wall of the stall is the usual configuration. Most guidelines recommend that the bottom of longer grab bars is fitted 36 inches from the floor. ADA Grab Bar Requirements for Shower Stalls, Bath Tubs, and Toilet Stalls CONSULT MANUFACTURER'S INSTALLATION INSTRUCTIONS FOR PROPER INSTALLATION OF SPECIFIC PRODUCT. Grab Bars in Toilet Stall Requirements: Side Wall - The side wall grab bar shall be 42 inches (1065 mm) long minimum, located 12 inches (305 mm) maximum

Shower grab bar placement diagram. Shower Stall Grab Bar Placement. Here are a few rules of thumb for where to place grab bars in your shower. Vertical entrance bar should go close to the shower door jamb. Horizontal bar should go along the side wall, 34-36 inches above the floor. Vertical bar on the faucet end wall should go near the faucet handles. Bathtub/Shower Combination ... Grab Bars in Shower Stall Requirements. Transfer Type Shower Compartments - Transfer type shower compartments shall be 36 inches (915 mm) by 36 inches (915 mm) clear inside dimensions measured at the center points of opposing sides and shall have a 36 inch (915 mm) wide minimum entry on the face of the shower compartment. ... Shower grab bar placement diagram. Do it yourself specialists recommend several correct positions to mount grab bars in a shower. Vertical horizontal and diagonal safety bars inside the shower offer safety and peace of mind. For placing grab bars in your bath tub or bathtub shower combination use these tips. Step 4 - Review the Grab Bar Placement Diagrams and select the floor plan and grab bar plan that matches your conditions. How to Use This Manual Grab bars can be purchased at neighborhood hardware stores like Ace or Cole Hardware, larger construction supply houses like Discount Builders

5. Place the bar on the wall. When inside the shower, you should have a grab bar placed horizontally along the wall near the faucet. This will make the showerhead and faucet easily accessible while still being able to hold on to the bar. If necessary, make the bar the length of the whole shower. Dimensions for grab bars. Grab Bars need to be mounted lower for better leverage (33-36" (840-915 mm) high). Horizontal side wall grab bars need to be 42" (1065 mm) minimum length. Vertical grab bars are not yet covered in the ADA guidelines, however, ANSI specifies the dimensions shown in the diagram. A A B B 36" max 915 mm 48" max 1220 mm But, fortunately, grab bars in the bathroom can make it safer for you and help you to maintain your freedom just that much longer. Advantages Health Benefits. The fear of falling and getting hurt can keep you from doing a lot of things - including taking a bath. Seniors can become reluctant to bathe or shower as often as they should because ... alternative to a grab rail, as you can push up on the arms. When using a bath/box step to help you step in and out of your shower more easily, we recommend that you also use a grab rail/bar to steady yourself as you get on and off the step. It may also be a good idea to have a bar you can simply hold on to whilst showering for extra support.

shower compartment size and clearance . figure 11b-608.3.2 grab bars for standard roll-in type . shower. figure 11b-608.3.3 grab bars for alternate roll-in type showers p/bc 2020-088 . these diagrams illustrate the specific requirements of these regulations and are intended only as an aid for building design and construction. tubs and showers In the bathtub or shower stall, you can install the grab bars in the following locations. Vertically on the wall at the entrance to the tub or shower stall. Horizontally on the sidewall of the tub or stall. This bar should be long enough. If you have a shower seat, install another bar near the seat at an angle. Vertical placement especially meets the weakness that one might have standing up from a bench or chair in the shower. (Remember that you can adjust that bench up and down!). Although diagonal bars can meet the initial phase of sit to stand, it is much easier to pull on a vertical bar to stand, than on a diagonal or horizontally placed one. The grab bar installer must tailor residential grab bar placement to the individual's specific needs, wall conditions, and bathroom configuration. Grab bars can be placed horizontally, vertically, or diagonally beside the toilet, and on occasion, horizontally or vertically, directly in front of the commode to provide additional assistance when ...

Bathroom Safety After Surgery

Be careful with height ... In toilets and showers, the tops of horizontal grab bars need to be 33 to 36 inches from the floor. In a transfer shower, the bottom of ...

Ada Grab Bar Requirements Grab Bar Specialists

The space between the grab bar and projecting objects abcwe the grab bar shall be 12 inches (305 mm) minimum. EXCEPTIONS: 1. The space between the grab bars and shower controls, shower fittings, and other grab bars above the grab bar shall be per- mitted to be 1 inches (38 mm) minimum. 609 Grab Bars 609.1 General. Grab bars in accessible toilet or

Shower Grab Bars Placement Youtube

Generally, grab bars should be installed at whatever height is most appropriate for their primary user. However, ADA standards recommend that rear grab bars be installed at the height of between 33 and 36 inches above the finished floor of the tub, shower or bathroom. This is a good starting range. That said, whilst it is advisable to consider ...

Kohler Arsdale 9 In Grab Bar In Vibrant Brushed Nickel K R27237 Bn The Home Depot

The standard grab bar placement recommendation is for 3 bars to be placed in the shower. One vertically at the exterior entrance of the shower. One horizontally at the inside wall. One vertically underneath the shower head. You can see we marked the 3 recommended positions in this shower with blue painter’s tape.

Ada Height Requirements For Grab Bars By Toilet

I created this video with the YouTube Slideshow Creator (https://www.youtube.com/upload) shower grab bars placement,grab bars ,handicap grab bars ,bathroom g...

Designing Bathrooms To Accommodate Grab Rails Intelhanddryers Blog

Movable Grab Bar - Vive Suction Shower Grab Bar. This grab bar is designed with suction cups, allowing one to position or reposition on the surface of the shower wall as needed - no installation required. Integrated color indicators turn green when the device is secured to the wall, and red when unsecured. The handle is textured and ...

Jual Bathroom Toilet Safety Grab Bar Elderly Disability Handrail With Hol Jakarta Utara Toserba Support Lzd Tokopedia

Suction Bathtub & Shower Safety Grab Bar - 12" by Unknown. $11.99. Suction tips fits 4" x 4" tiles. To be used as a balance assit only. Suction cup grab bar. 12" long. No drilling. Suction Tub and Shower Bar provides support for standing up while showering or getting out of bathtub.

Always Available At 941 966 0333 Dr Grab Bar Dr Grab Bar

Horizontal grab bars mounted inside the tub or shower provide added stability, whereas diagonal grab bars provide added stability when lowering to sit on a shower seat. Generally a 16-in grab bar or a grab bar that is a multiple of 16 (16-in, 32-in, or 48-in) works best. In most cases studs are located 16 inches apart on center.

Grab Bars In Accessible Toilet Compartments Ada Approved Harbor City Supply

A horizontal grab bar serves as a hand hold while a bather uses the shower. The horizontal bar accommodates personal preferences of facing forward or backward while bathing. This grab bar also doubles as a towel holder. These bars typically are sold in lengths that are in increments of 16 inches—a 16-, 32- or 48-inch bar, according to the Mr ...

Ada Grab Bar Requirements Grab Bar Specialists

Grab Bars at Water Closets. Figure 29(a) Back Wall. A 36 inches (915 mm) minimum length grab bar, mounted 33-36 inches (840-915 mm) above the finish floor, is required behind the water closet. The grab bar must extend at least 12 inches (305 mm) from the centerline of the water closet toward the side wall and at least 24 inches (610 mm) from ...

Bradley 1 1 2 Grab Bars For Showers Grab Bar Specialists

Use the diagram at right as a guide for the installation. If you want to add a second grab bar for support on the shower front wall, it should be at least 12 inches long and installed vertically. Created Date:

Six Toilet Grab Bar Configurations Are Shown The No Bar Configuration Download Scientific Diagram

General Guidelines for Placement of Grab Bars in Showerhttp://healthcallsathome.wordpress.com/

27 Grab Bars Ideas Grab Bars Bathroom Safety Handicap Bathroom

Two grab bars shall be installed on the back wall, one located in accordance with 609.4 and the other located 8 inches (205 mm) minimum and 10 inches (255 mm) maximum above the rim of the bathtub. Each grab bar shall be installed 15 inches (380 mm) maximum from the head end wall and 12 inches (305 mm) maximum from the control end wall.

Grab Bar Specialists Installation

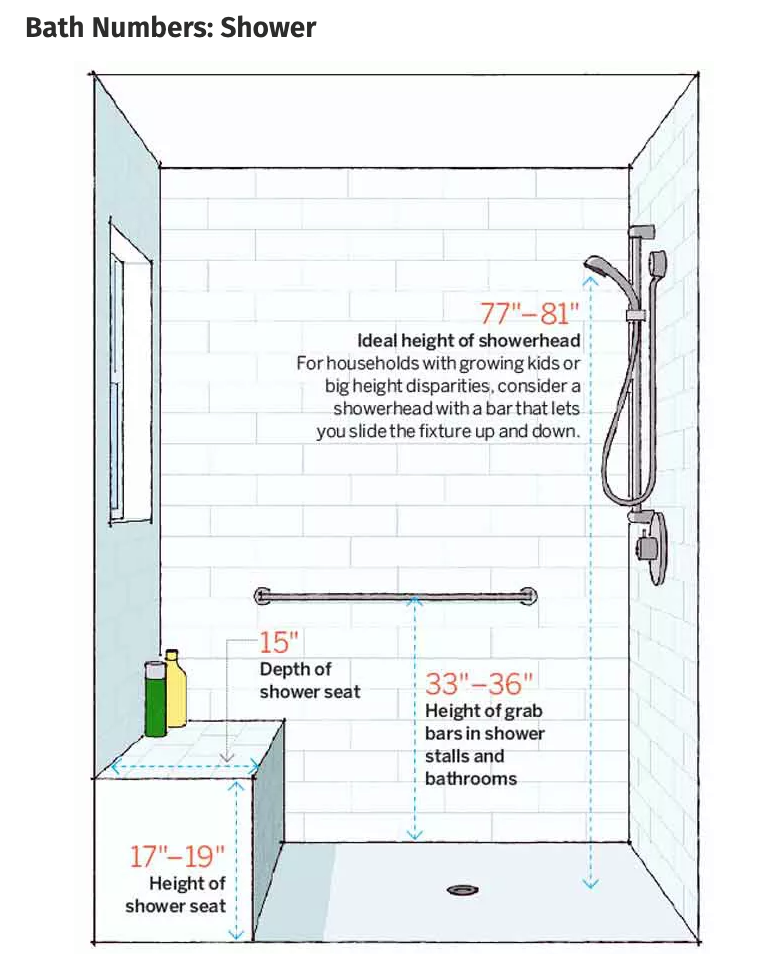

The grab bar (s) shall be mounted 33-36 inches (840-915 mm) above the shower floor measured at the entry. The controls shall be placed in an area between 38-48 inches (965-1220 mm) above the floor. The controls and spray unit shall be within 18 inches (455 mm) of the front of the shower. Figure 37 (b) 30 in by 60 inches (760 mm by 1525 mm) Roll ...
