The most commonly used control pattern throughout the world is the ISO controls. In the ISO control pattern, the left hand joystick controls Swing (left & right) and the Stick Boom (away & close), and the right hand joystick controls the Main Boom (up & down) and Bucket motions (close & dump).Relevant standards ISO 10968 and SAE J1177. It would have been easier with another set of eyes to just crack a line at a time, but I made due by myself. Based on the earlier image of the pilot lines I found that switching L3 and R1 as well as R3 and L1 converted the machine from SAE/ CAT Control Pattern to ISO/ John Deere Control Pattern.
Iso Excavator Control Pattern Diagram PDF Download. Lever Changes Joystick Pattern In Off Highway Machines. John Deere Or CAT Controls LawnSite. AEHQ6558 00 303 5E CR 304E CR 305E CR 305 5E CR Mini. Cat Excavator Control Pattern Diagram Free Document. Cat Excavator Control Diagram PDF Download. Specalog For 385C L Hydraulic Excavator AEHQ5625 02.
Cat excavator control pattern diagram
The brand new COMPASS control panel on the Cat ® E Series mini hydraulic excavators was speciically designed by Caterpillar for compact excavators. It adds several new features to the machines ... Change the operating pattern between excavator and backhoe with a simple press of a button from the comfort of the cab. cat 320c and other excavators: standing at rear, operators side, cab side, left, back door. inside and down to left. loosen a safety bolt with a 13 or 14 mm socket to turn valve. new volvo ec48 r mini excavator: behind right hand elbow as if sitting in seat, on back dash panel, behind plastic cover. uses a wingnut to loosen safety lock. https://www.letsdig18.com/ for shirts and more
Cat excavator control pattern diagram. Mar 1, 2011 — My own John Deere excavator runs on CAT controls. ... The other most commonly used control pattern is ISO controls, which differs from the ... An optional control pattern changer allows the operator to easily change between backhoe and excavator digging patterns, further increasing the 305 CR’s versatility. pg. 5 Serviceability Simple, convenient daily maintenance is provided with the tilt-up, wide engine enclosure, allowing access to all major components and service points. Using the monitor and your pattern changer settings, learn how to change back and forth between backhoe and excavator machine operation settings. An optional control pattern changer allows the operator to easily change between backhoe and excavator digging patterns, further increasing the 304 CR’s versatility. pg. 5 Serviceability Simple convenient daily maintenance is provided with the tilt-up, wide engine enclosure that allows access to all major components and service points.
John Deere cat control's If the joystick control pattern is changed, the existing control pattern film must be replaced with the correct pattern film. And, if not already installed, put on a new warning film and instructional film. See following procedure. Caterpillar recommends and supports only the standard excavator and backhoe patterns as shown in Illustration 1. Changing control pattern on 2005 cat 307c without a lever. Looking for a diagram. Discussion in 'General Industry Questions' started by Doug not so fun, Oct 12, 2015. We'll see that we can teach you about running an excavator. If you're in the market for a piece of equipment like this, or you have parts or service needs for one that you already have, give us a call at Messick's. We're available at 800-222-3373 or online at messicks.com. Tags: excavator, kubota, kubota-construction, kx-series-excavators.
The diagram above will help to describe the name of the part you are looking for. The cat 3035e2 cr mini excavator delivers high performance in a 3 ton compact size machine for. Luckily switching the control pattern on a john deere excavator is quick and easy to do. Your guide to backhoe loader controls. The compass control panel on the cat e2 ... In this episode, we cover what the differences are between the ISO (CAT) and SAE (John Deere) controls on our Komatsu excavator. Have a question/comment? Lea... Luckily, switching the control pattern on a John Deere excavator is quick and easy to do. When using ISO controls (excavator controls or John Deere controls), the right-hand controls the stick and bucket motions; the left-hand controls the swing and the boom. SAE controls (backhoe controls or CAT controls) are the opposite. backhoe and excavator control patterns with the standard pattern changer valve is as easy as loosening and moving a bolt on the side of the machine. Pilot Operated Stabilizer Controls. These provide low effort and fine modulation control. The stabilizer controls are within easy reach of the operator when operating the backhoe. Pilot Control Pods.
Operator-Friendly Excavator Controls - Bobcat Company
Hydraulic Excavator Engine Engine Model Cat® C4.4 ACERT™ Net Power (ISO 9249) 121 kW 162 hp Net Power (SAE J1349) 121 kW 162 hp Gross Power (ISO 14396/SAE J1995) 122 kW 164 hp Bore 105 mm 4 in Stroke 127 mm 5 in Displacement 4.4 L 269 in3 • The 320 meets U.S. EPA Tier 4 Final emission standards.
200DLC - EXCAVATOR Mechanical Pattern Changer Kit EPC John ...
The serial number is ***** Can you email a diagram of which hoses to switch? My email is *****@*****.*** Show More. ... I'm looking for the control pattern switch or valve on a CAT 426F2 backhoe loader ... I have 1993 jcb backhoe and would like to change control pattern from backhoe to excavator control pattern can u advise please , many thanks ...
200CLC - EXCAVATOR CONTROL PATTERN SELECTOR KIT EPC John ...
Excavators. No matter what type of work you do - excavation, trenching, or truck loading - Cat® excavators deliver top performance, unmatched versatility, and excellent fuel efficiency. Simple operation, outstanding durability and the latest safety and technology features will help you take your business to the next level.
Caterpillar Schematics Hydraulic & Electrical Systems 4.45GB ...
Apr 4, 2016 — Cat Excavator Control Pattern Diagram ... Your guide to backhoe loader controls. For more information vis. Bh Control Change. And if not already ...
Excavator control pattern (ISO standard). | Download ...
https://www.letsdig18.com/ for shirts and more!
So what do you prefer? ISO or SAE? - General Topics - DHS Forum
https://www.letsdig18.com/ for shirts and more

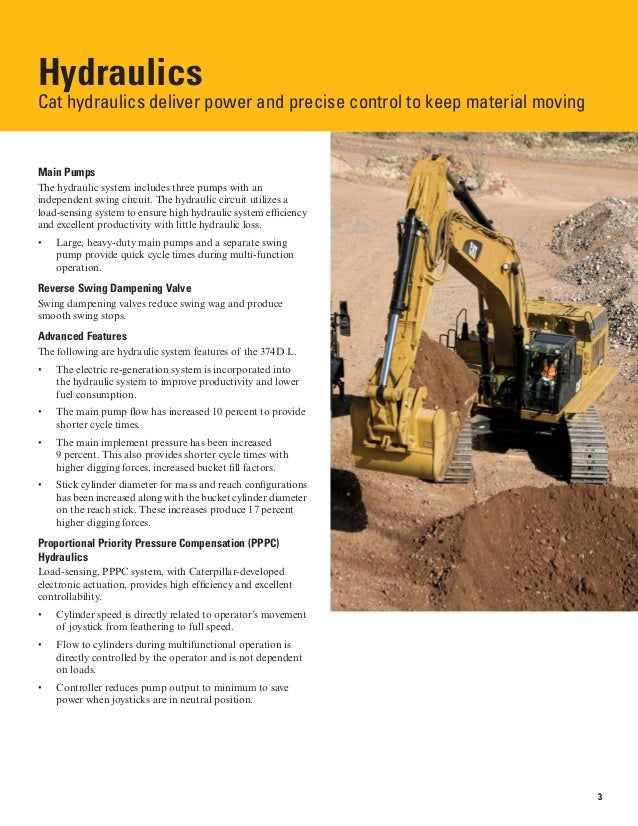

Escavadeira hidraulica cat 374 dl
