17.05.2014 ... I have a 1953 A5 light 12. ... Browning Auto-5 missing friction rings, help with setup ... The part not pictured is the Friction Ring. Browning Auto 5 Friction Ring. $7.50. 10. Ratings Snapshot 5. out of 5. Would recommend this product. View Available Options. Quickview. Browning A-5 Shotgun, Factory ...

Friction ring setting for light toads - Browning Auto 5 Light 12 20 Gauge. I've shot thousands and thousands of 7/8 oz loads in my A-5's. If the friction piece and ring are positioned correctly they will properly cycle very light loads. browning friction ring diagram - Google Search. www.google.com.

Browning a5 friction ring diagram

Technical Service Information. GENERAL DESCRIPTION. The RE5RO5A is a 5 speed, rear wheel drive transmission. It uses full electronic control for the upshifts and downshifts, with 5th gear being overdrive. The individual gear ratios are achieved through 3 planetary gear sets connected one... An O-ring is a torus, or doughnut-shaped ring, generally molded from an elastomer, although O-rings are also made from PTFE and other thermoplastic materials, as well as metals, both hollow and solid. This handbook, however, deals entirely with elastomeric O-rings. O-rings are used primarily for... Changing the friction ring setup on a Browning A5 so it cycles. Without changing the rings the gun would not cycle. Setting up the the rings in the Browning A-5 for 2-3/4 and 3 inch Magnums.

Browning a5 friction ring diagram. How to set up Browning A5 friction rings and why the fail to eject. For light loads this friction ring is taken off and placed at the extreme rear end of the magazine tube, between the rear end of the recoil spring and the receiver with ... Listing Of Websites About browning a5 friction ring diagram. Share this Friction In normal applications harder materials provide less friction than softer materials. If the friction of the moving metal surface across the O-ring is in the same direction as the direction of the pressure, the O-ring will be dragged into the clearance gap more readily and thus The diagram (fig. Browning A5 (full disassembly and operation). To achieve reliable functioning with wide variety of loads, Browning used self-adjusting friction brake in the recoil system, which consisted of several (one or two, dependingon the exact model) friction rings, located around the magazine tube.The tubular...

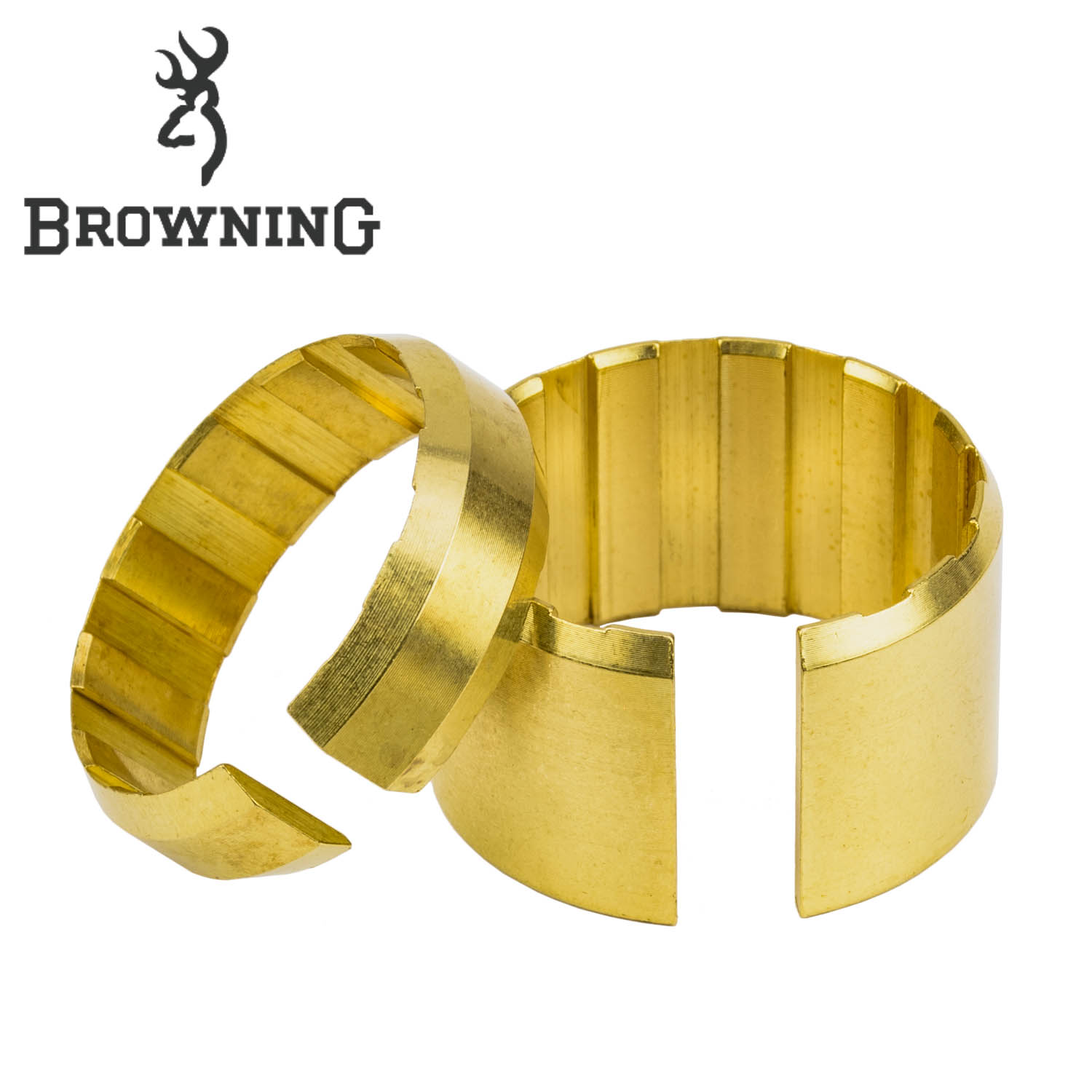

I have a Browning Auto 5 Light 12. The manual says the friction rings have different settings for high and low power shells. Take a look here for a link to a diagram showing the different load setups. The 'friction ring' is the brass piece (about 7/8" long) that has a piece of blued spring steel around it. Browning Shotguns Auto 5 (Recoil Operated) Parts List. Browse our selection of Browning A5 parts and find exactly what you need today. Also known as the Automatic 5 and Auto 5, these Browning A5 parts are perfect to help you finish your latest restoration or repair. Friction Ring. Enlarge Image. Find many great new & used options and get the best deals for Browning a 5 Friction Ring Placement Laminated Sheet at the best online prices at eBay! Free shipping for many products! Buy Browning Auto 5 Friction Ring Factory replacement gun parts, accessories and gunsmithing service on most manufacturers including Browning, Winchester, ...

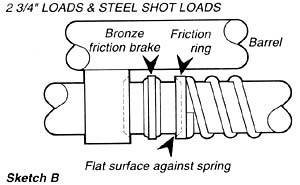

Mar 18, 2012 · The instructions in an old Browning booklet which was from an old Browning A-5 - 12 gauge which I no longer have, says that if the friction rings is installed on the receiver end of the spring (i.e. in the lower powered shell position) that the BEVEL is supposed to face (go towards) the receiver and NOT away from the receiver. Torque Converter Friction Rings. To meet the varied needs of the aftermarket, Sonnax offers a full line of top-quality friction products in a wide variety of Available exclusively from Sonnax, woven carbon was developed by automotive manufacturers as the most effective friction ring material for GM and... Changing the friction ring setup on a Browning A5 so it cycles. Without changing the rings the gun would not cycle. It would not eject the spent shell. Now y... For light loads this friction ring is taken off and placed at the extreme rear end of the magazine tube, between the rear end of the recoil spring and the ...

Browning. Specific Part. friction ring and friction spring. Type. friction ring /spring. MPN. Does Not Apply. Brand. Browning. Показать все параметры Свернуть.

Browning firearms should be serviced by a Browning Recommended Service Center or by our Service Facility in Arnold, Missouri. We assume no responsibility for injuries suffered or caused by unauthorized servicing, alterations or modifications of Browning firearms.

The annual question: How does an A5 friction ring setup work?Remember, what we show here is what you need to go learn, not a tutorial. If you do not posses t...

I found this info on the Browning webisite under product information(top left, under Browning logo) then owner's Next the recoil spring, then the bronze friction piece, flat side down against the recoil spring, beveled side up, towards the muzzle.

The Auto-5 friction rings and recoil system (located under the handguard) are basically a linear brake system. As the barrel travels backward it fights a Quick Disclaimer: Auto-5 Friction Ring Orientation. The following recoil system setups are ones that I pulled straight from a Browning armorer's manual...

Earn +20 pts. Q: Browning a-5 magnum friction ring diagram? If no diagram, go to Browning .com and there you can find a diagram, but remember to find the Mag 12, it is different from a standard A-5.

Browning A5 Parts Breakdown · Videos · Contact Us · About Us · My Account · Home » Shop » 16 Ga. » A5 Friction Ring Set-up 16 Ga. 2-3/4″.

John M. Browning with his Auto-5. Browning A5 Hunter (2014) with Invector-DS extended choke. The Auto-5 has a system of bevel rings and a friction piece or pieces, which retard the barrel's rearward travel. Setting these rings correctly is vital to good shotgun performance and to ensure a...

The friction rings should also be inspected for excessive wear, and new springs are a good idea on an older example. Wasn't there a friction ring diagram pasted inside the forearm? Nobody hereabouts paid any attention to it, them there spring operated Belgium Brownings were expected to Just Work.

Browning a5 friction ring setup. Forums > Shotguns > Browning Auto A-5 > Discussion in 'Browning Auto A-5' started by Rudolph31, Dec 9, 2017. For light loads this friction ring is taken off and placed at the extreme rear end of the magazine tube, between the rear end of the recoil spring and the...

A5 Magnum and 2 3/4" 1550FPS loads | Duck Hunting Forum

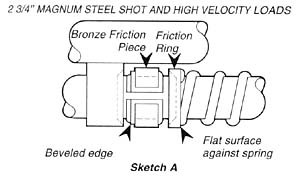

09.12.2017 ... For heavy loads, the steel Friction Ring is placed between the Recoil Spring and the BFP with its bevel forward. Now when the gun fires the BFP ...

Jun 29, 2015 · The Magnum friction ring kit seems to have thinner bronze bushings, but again it's hard to see on the diagram I'm looking at online. These must have been the narrower bronze rings I was seeing. The steel friction ring is missing (not placed below the recoil spring as recommended), so this gun was set up for light loads correct?

Installation direction for "friction ring" on Browning A-5 ...

Friction, either break-out, running, or both, can become troublesome in some applications. At any given time there are anomalies and difficulties in the These are accentuated if one of the surfaces involved is deformable as in O-ring piston or shaft seals. An understanding of the principles may prove helpful...

Get the friction rings and spring from a regular or light auto five and put it in the magnum. The diagrams in the factory manuals have gone dead in the above posts and links. Check out the A5 disassembly guide sticky at the top of the main Browning page on here...you can see what part goes...

Go to Brownings website where they have a S/N decoder and you can find out when your gun was made. $400 and judging from the shape of your Before you fire it, make sure the friction rings are set properly for the type of shell you use. Generally the 2&3/4 loads use the light settings and the 3...

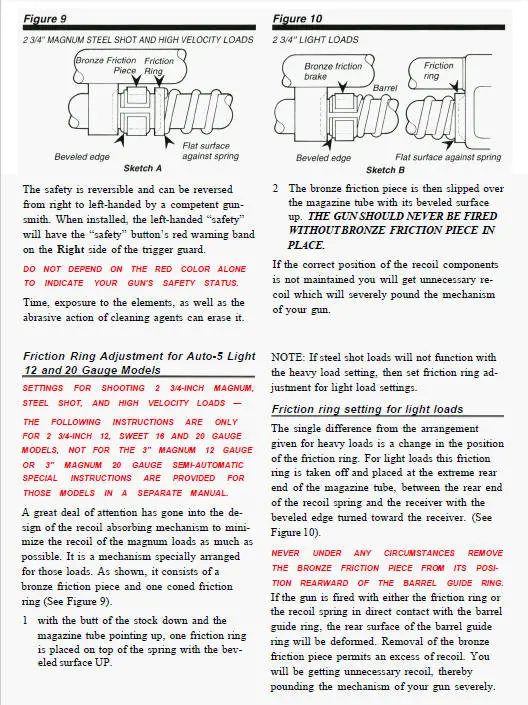

Jan 07, 2022 · Last Updated on Fri, 07 Jan 2022 | Browning Auto 5 Light 12 The single difference from the arrangement given for heavy loads is a change in the position of the friction ring. For light loads this friction ring is taken off and placed at the extreme rear end of the magazine tube, between the rear end of the recoil spring and the receiver with ...

Changing the friction ring setup on a Browning A5 so it cycles. Without changing the rings the gun would not cycle. Setting up the the rings in the Browning A-5 for 2-3/4 and 3 inch Magnums.
