How To Connect A 4-Wire Smoke Detector - Home Controls Hi, Amba, Maybe your wired interconnected smoke alarm system doesn't have the signaling pair of wires required by the security system. Your system might only be using only high voltage (120 VAC) wiring to communicate with other smoke detectors which makes it incompatible for use with the low voltage (less than 30 VAC/VDC) DSC security system. PDF Smoke Detector Installation Wiring Diagram smoke-detector-installation-wiring-diagram 2/13 Downloaded from stats.ijm.org on April 6, 2022 by guest repairs. Smoke detector training National Fire Academy 1978 National Electrical Code National Fire Protection Association 2010 Safe, efficient, code-compliant electrical installations are made simple with the latest publication of

PDF 4-Wire Ionization Duct Smoke Detector - System Sensor Wiring Guide System wiring diagram for 4-wire duct smoke detectors Wiring diagram for DH100ACDCI to SSK451 and interconnect feature: 15 19 14 3 20 1 3 Alarm Signal 2 Aux. Power + Sup. N. O. Sup. COM Aux. Power - NOTE: Wiring diagram shown is for DH100ACDCI 4-wire duct smoke detector system equipped without a control panel. Alarm Power Common ...

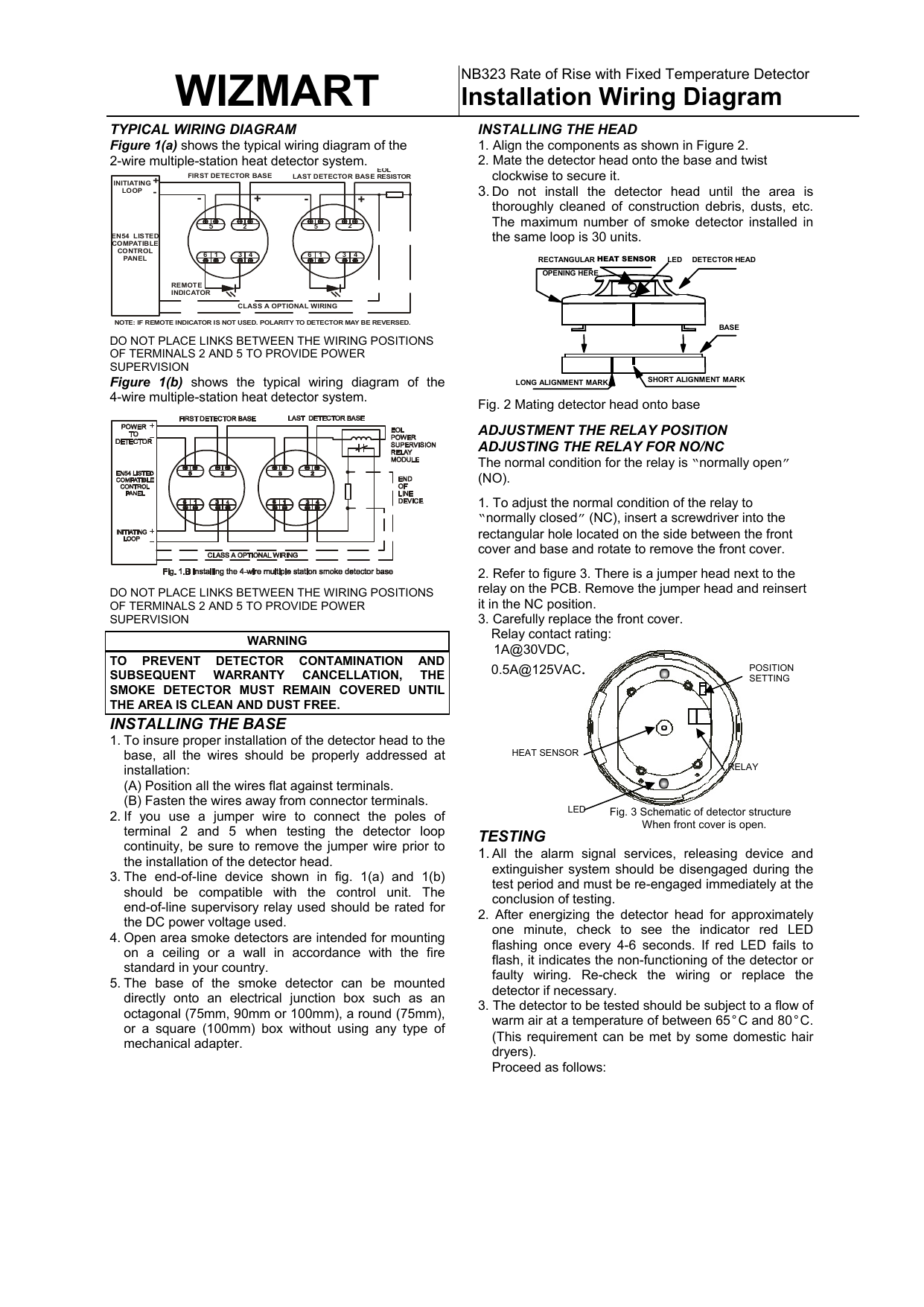

4 wire smoke detector wiring diagram

How do I install a 4-wire smoke on my VISTA-P ... - Alarm Grid There are 2 types of wired smoke detectors that can be used on the Vista-21IP, Vista-20P, Vista-15P panels, 2-wire, or 4-wire.. 2-wire smokes are only supported on zone 1 of the panel, and the logic for resetting the smoke after an alarm is built in, and happens automatically on the 2nd disarm after an alarm on that zone. 2 Wire Smoke Detector Wiring Diagram - Wiring Diagram 2 Wire Smoke Detector Wiring Paradox Evo Alarm Panel - Youtube - 2 Wire Smoke Detector Wiring Diagram. Wiring Diagram includes numerous in depth illustrations that display the relationship of assorted things. It consists of directions and diagrams for different kinds of wiring techniques and other things like lights, windows, etc. Electrical Wiring Symbols, Meanings and Drawings 02.07.2021 · Electrical Wiring Symbols, Meanings and Drawings - Detailed Chart and List of All Electrical Symbols and their Function. Residential and Commercial. Residential and Commercial. April 6, 2022

4 wire smoke detector wiring diagram. What is a Four Wire Smoke Detector? - Douglas Krantz A 4 wire smoke detector uses two wires or terminals for the fire alarm zone, two wires or terminals to receive its operating power. Being a conventional device, it has to be regularly tested manually to make sure it works. Even though the description for the detector says "4-wire", there are 8 wires that go to the detector from the building wiring. Smoke Detector Wiring Diagram - Wiring Schematic Diagram A Hardwired Smoke Alarm Installation Involves Wiring One Of The Smoke Detectors (Closest To The Voltage Source) To A 120 Vac Breaker In The Main Electric Panel Or Tapping From A 120 V Electrical Box, Wiring It Using A 14/2 Cable With A Black (Live), A White (Neutral), And A Ground Wire, As Shown By The Diagram In Figure 5. RAMPS 1.4 - RepRap This section presents the basic steps to wire an assemble RAMPS 1.4 board assuming the more common scenarios. Check the #Assembly section to learn how to assemble your own Ramps 1.4 board. Once you start putting electricity into your board - even at just 12 volts - you have to take basic, common sense precautions to avoid fires. Just in case these fail, test your workshop … Connecting 4 Wire Smoke Detectors - Home Security Systems ... The schematics above show a typical 4-wire smoke detector circuit. The top circuit shows a single run from the panel out to the two detectors, while the bottom shows a dual run out to the detectors, then back to the alarm panel. In both cases, notice that Detector 1 is "looped" into the wire run, while Detector 2 is the "end-of-line" device.

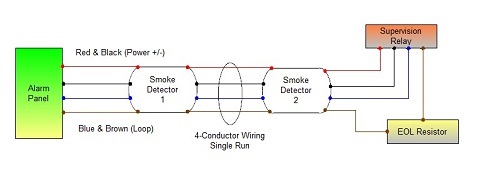

Wiring Diagram For Hardwired Smoke Detectors Smoke detector wiring, ranch style house First Alert has many choices for replacing old hardwired smoke alarms, as well as 2 Wire Smoke Detector Diagram. How to wire a smoke detector circuit for a professionally installed or DIY home alarm system. First Alert Smoke Detector Alarm | Hardwired with Ba . For details on hooking up a typical alarm ... 4 Wire Smoke Detector Wiring Diagram - Cadician's Blog Jun 23, 2021 · 4 Wire Smoke Detector Wiring Diagram. June 23, 2021 · Wiring Diagram. by Anna R. Higginbotham. 4 wire smoke detector wiring diagram – You will need an extensive, skilled, and easy to know Wiring Diagram. With this sort of an illustrative manual, you will have the ability to troubleshoot, stop, and full your assignments easily. 4-Wire Smoke Detector Wiring | Tech Resource Online The image below illustrates typical 4-wire detector wiring on a two-piece detector. A two piece detector uses a base with a removable head. The power side wires the same as a 2-wire system. If a head is removed, the power opens. Not all 4-wire system use a separate base and head. Both positive wires are placed under the same terminal. Ademco Vista 20P Wiring Diagram - Home Security Systems ... The Ademco Vista 20P also supports 4-wire smoke alarms, but a relay will need to be added. This is to allow the panel to switch off power to the smokes during a "smoke detector reset" command. For more details on wiring smoke detectors, see: Smoke Detector Circuit Basics Connecting 2 wire Smoke Detectors Connecting 4 wire Smoke Detectors

Co2 Detectors Wiring Diagrams, Series Diagrams Figure Red - Poor air quality CO 2 >1500ppm Merlin CO2 Detector C1 Wiring Diagram 1. Wiring diagrams located on page 4, Figure 4. Just like your smoke detectors, it s a good idea to test your CO detector monthly. It shows the components of the circuit as simplified shapes, and the skill and signal links surrounded by the devices. 4-Wire Low-Flow Duct Smoke Detector Wiring Guide System wiring diagram for 4-wire duct smoke detectors Specifications Size 143⁄ 8″ (37 cm.) Length 51⁄ 2″ (14 cm.) Width 23⁄ 4″ (7 cm.) Depth Shipping Weight 33⁄ 4 lbs. (1.7 kg.) Operating Temperature Range 32° to 131°F (0° to 55°C) Storage Temperature Range –22° to +158°F (–30° to +70°C) Operating Humidity ... 4 Wire Smoke Detector Wiring Diagram - easywiring Jun 20, 2021 · 4 wire smoke detector wiring diagram wiring diagram is a simplified pleasing pictorial representation of an electrical circuit it shows the components of the circuit as simplified shapes and the gift and signal associates surrounded by the devices. 4 Wire Smoke Detector Wiring Diagram - Wiring Diagram Jul 18, 2021 · 4 Wire Smoke Detector Wiring Diagram July 18, 2021 · Wiring Diagram 4 wire smoke detector wiring diagram – You will need an extensive, skilled, and easy to know Wiring Diagram. With this sort of an illustrative manual, you will have the ability to troubleshoot, stop, and full your assignments easily.

PDF SuperDuct Four-Wire Duct Smoke Detector Sampling tubes 8 P ... Technical Bulletin SuperDuct Four-Wire Duct Smoke Detector 5 Sensitivity: 0.67 to 2.46 %obscuration/ft Reset time: 2 seconds, max. Power up time: 8 seconds, max.

4-Wire Photoelectric, Low-Flow Duct Smoke Detector Wiring Guide System wiring diagram for 4-wire duct smoke detectors Wiring diagram for DH100ACDCLP to SSK451: 15 19 14 3 20 1 3 Alarm Signal 2 Aux. Power + Sup. N. O. Sup. COM Aux. Power – NOTE: Wiring diagram shown is for DH100ACDCLP 4-wire duct smoke detector system equipped without a control panel. Alarm (Red LED) Power (Green LED) Common ...

Smoke Detector Wiring 101 - DoItYourself.com A hardwired smoke alarm installation involves wiring one of the smoke detectors (closest to the voltage source) to a 120 VAC breaker in the main electric panel or tapping from a 120 V electrical box, wiring it using a 14/2 cable with a black (live), a white (neutral), and a ground wire, as shown by the diagram in Figure 5.

How Do I Wire a 4-Wire Smoke Detector to My Wired Alarm ... The following diagrams outline wiring for the 4-wire smoke zone, the end of line power supervision relay, and using either a trigger or a relay to perform the smoke reset: 2. Program to the panel. After the connections have been make, the 4-wire smoke must be programmed with the hardwired zone on the alarm system.

Wiring for 4-wire smoke alarms... - DoItYourself.com ... The Ademco install manual is clear as mud on wiring 4 wire smoke detectors. The manual seems to illustrate 2 relays being involved. It says to wire 4 wire smoke detectors to Zone 2 or above. Can someone explain to me in simple English how to wire the 4-wire smoke circuit to the Ademco panel using one of the 4204 relays and Zone 2?

Smoke Detector Wiring Diagram Installation Guide - Wiring ... Dmp 2w Blx Addressable Smoke Detector Installation Guide Manuals. Smoke detector installation guide mct423 wireless user wiring diagram ea318 manual honeywell mkii typical manualzz mct425 photoelectric esl sentrol 429 449 instructions siemens op121 alarm 6460474a radio model fire system apollo 58000 300apo security sensor brk electronic 4919 hochiki soc 24v english sh 449cste install an bell ...

Dsc Smoke Detector Wiring - Wiring Diagrams Free Wiring diagram for 2- wire and 4-wire smoke detectors. just bought a new dsc power 5 alarm system and want make sure I have wired the smokes right have connected aux + to + on smoke and. Two-wire photoelectric smoke detectors incorporate low-profile design and features to help reduce false alarms and consistent smoke detection.About Us.

2 and 4-Wire Conventional Smoke Detectors | Kidde Fire Systems The 700 Series conventional smoke detector is an interchangeable head and base detector with a light scattering optical sensor that provides an excellent response to a wide range of fires. The 700 Series consists of two and four wire conventional photoelectric smoke, as well as photoelectric smoke with heat detectors.

4 Wire Fire Alarm Wiring Diagram Strobe Panic Connecting a 4-wire smoke detector to a wired alarm system is a slightly The following diagrams outline wiring for the 4-wire smoke zone, the. A.6 Sensor Reset for 4-Wire Smoke Detectors A.7 PGM This manual lists a number of alarm initiating and alarm notification .. Outputs programmed as Fire Strobe will not deactivate ..

Wiring Diagram Smoke Alarm System - easywiring For 4 wire smoke detector wiring running an extra 4 conductor wire gives the same effect. Wiring diagram smoke alarm system. New addressable fire alarm wiring diagram smoke detector webtor. A wiring diagram is a simplified traditional photographic depiction of an electric circuit. Wiring diagrams for smoke detector diagram pdf duct wiring within.

Electrical Wiring Symbols, Meanings and Drawings 02.07.2021 · Electrical Wiring Symbols, Meanings and Drawings - Detailed Chart and List of All Electrical Symbols and their Function. Residential and Commercial. Residential and Commercial. April 6, 2022

2 Wire Smoke Detector Wiring Diagram - Wiring Diagram 2 Wire Smoke Detector Wiring Paradox Evo Alarm Panel - Youtube - 2 Wire Smoke Detector Wiring Diagram. Wiring Diagram includes numerous in depth illustrations that display the relationship of assorted things. It consists of directions and diagrams for different kinds of wiring techniques and other things like lights, windows, etc.

How do I install a 4-wire smoke on my VISTA-P ... - Alarm Grid There are 2 types of wired smoke detectors that can be used on the Vista-21IP, Vista-20P, Vista-15P panels, 2-wire, or 4-wire.. 2-wire smokes are only supported on zone 1 of the panel, and the logic for resetting the smoke after an alarm is built in, and happens automatically on the 2nd disarm after an alarm on that zone.
