I had issues a few years ago with some individual speakers cutting out on my Marshall 1960A 4X12 cab. I opened it up to check the connections and they were all good. I ended up cleaning the Stereo/Impedance selector switch and jacks on the cab and it fixed the issue. I only use the cab during rehearsals and there has been very few of these lately. Looking for wiring diagram for Marshall 1960a cab backplate Discussion in 'Amp Tech Center' started by itsGiusto, Jun 30, 2021. Tags: 1960a; 4x12 guitar cabs; marshall; Jun 30, 2021 #1. itsGiusto Tele-Holic. Posts: 786. Joined: Dec 31, 2017 ... with wires and the labeled jacks do the switching.Vast improvement over the stock Marshall unit type ...

To me it looks like an older Marshall 1960A cab, but feels a bit more solid. With the help of a mate of mine, I re-wired it to 16 ohms stereo. The left side is a EV 12L 200 watter in series with a C90 Black Shadow. The right side is another EV 12L 200 watter with a Boogie V30. ... if you look at the old thread there is the wiring diagram I used ...

Marshall 1960a wiring diagram

Marshall 1960a Wiring Diagram 21.08.2018 6 Comments I recently bought this Marshall JCM A lead 4X12 cab used for $ and thought I got a I drew up a quick diagram to show how its wired. I recently bought this Marshall JCM A lead 4X12 cab used for $ and thought I got a I drew up a quick diagram to show how its wired. Hi Guys, Need a little help. Hi Gear-pagers, i just recently picked up a Marshall 1965B cabinet and was trying to determine the date of manufacture. i can't seem to find anything online regarding cabinet serial numbers that fits. i think the speakers are from May 25th, 1988 (assumming i interpretted the serial number correctly). The serial number on the cabinet is 10087. I looked up a Marshall wiring diagram for the regular 1960a cab, which this really is, and the wiring is correct with the 16 ohm speakers. I think the site I saw was wrong. My songs....enjoy! (hopefully ) http://www.soundclick.com/bands/page...?bandID=652921 or for older stuff too, but slower downloads

Marshall 1960a wiring diagram. When running 4 Ohms into the 4 Ohm Mono input of my 1960A, only the two speakers on that side produce any sound. Is this normal? Or could there be a switch or wiring problem? 16 Ohms Mono pushes all four speakers as does running two amps 8 Ohm Stereo. 1 Sep 2016 — The diagram just shows 2 wires going from the positive and negative terminals of the jack to the corresponding terminals on the upper speakers.. 1960A and 1960B. 1960A. and 1960B. Two of the world’s bestselling 4x12” cabinets, famed for their excellent sound. These cabinets are designed to deliver a big sound for live performances. Both cabinets have an authentic 60’s design and pack plenty of power with 300W. Available either angled or straight to create the perfect Marshall stack. The photo you have is the same as the wiring setup in my diagram above. It is series/parallel, and it's the same as the old Marshall cab wiring as in your pic. The larger gauge wire will give you more signal, more bottom, more of everything. Scumback Speakers - Kick Ass Vintage Tone. sales@scumbackspeakers.com.

Apr 14, 2012 · 2. Joined: Apr 14, 2012. Location: st louis. I recently bought this Marshall JCM 1960A lead 4X12 cab used for $275 and thought I got a good deal on it. But after playing through it I can't help but to feel I don't like the sound of it. So I opened the back up to poke around to see if something is weird in it, and I noticed a lot of the screws ... Wiring Diagram For Stromberg Carlson 5 Magnet Hand Crank Telephone. 21.08.2018 21.08.2018. Marshall 1960a Wiring Diagram The consensus on 10" speakers seems to be you either love them or you hate 'em. I saw a Marshall 1965A 4x10 cabinet in a local music store that looks relatively small and lightweight. I've seen a few comparisons that have left me on the fence and unsure about pulling the trigger on it. I'm a little worried about the tone being too boxy compared ... marshall 1960a wiring diagram - Google Search . redscott131, Apr 9, 2011 #2. rokcabilly Active Member. Joined: Jan 26, 2011 Messages: 621 Likes Received: 115 Location: Orange County, CA. Dude! You're a life saver. I swear, I googled 1960 Marshall Lead Wiring Diagram, and didn't come up with this. What did you use as your search string? Maybe I ...

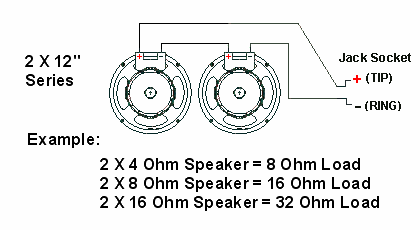

Apr 10, 2018 · Marshall 1960a Cab Wiring Diagram. Parallel Wiring - Speakers of equal impedances you divide the impedance value by the If cab speaker outs are paralleled, e.g., Marshall Plexi, JCM etc: Marshall cabinets employ four sixteen-ohm speakers, with the rated at that appears on the left side of the diagram is actually the right speaker when. I've got a Marshall 1960a 4x12 cabinet, that I want to change 2 of the speakers in. Nothing's wrong with the speakers in it, but they can be a little harsh. The speakers are 16ohm Celestion G12T-75's and I'm going to replace 2 of them with Vintage 30's. My main concern is about the wiring, since Marshall doesn't use your standard jack. Marshall 4x12 Wiring in Series - Parallel Four 16 ohm speakers = 16 ohms total load Four 8 ohm speakers = 8 ohms total load Red wires are positive Black wires are negative Position speaker terminals in towards the center of the cab 40 jtm45 wiring diagram. Series 2x12 Cabinet Wiring Diagram Photo By Ripley1046.Marshall 1960a Cab Wiring Diagram .Cabinet Wiring Diagram s Port City Amplif...

Can I Wire A Cab to be 4, 8 and 16 ohm? - Ultimate Guitar

Does anyone have images of the *STOCK* 1960 Cabinet speaker wiring diagram? I purchased a modded 1960A cabinet where the speaker switch was ...

Another cab impedance question : r/GuitarAmps

Genuine Marshall switchable dual mono/stereo jack plate for cabinets. Mounting screws not included. Up to 25% off at these four top shops Top Shops: Weekend Sales Ad

1960 Cabinet Wiring Diagram | MarshallForum.com

Marshall 1960a Wiring Diagram. A and B. Two of the world's bestselling 4x12” cabinets, famed for their excellent sound. These cabinets are designed to deliver a big sound for live. 4x12 Mono/Stereo Switching Facilities (A, B, AV & BV). To ensure maximum flexibility, four of our 4 x 12 cabinets boast a Mono/Stereo.

2x10 Speaker Cab Wiring - Series To Parallel

1960a wiring diagram wiring diagram for 1960a cab with 4 - 16 ohm speakers - Marshall Amplification Music question.

Fractal Audio Axe Fx Ii Owners Manual 304 User

This is still series-parallel wiring, so following this diagram will still work. Always be sure your amp head is set to the total load. So, for example, if you have two 16-ohm cabs for an 8-ohm total, then set your amp to 8 ohms. You could also use two 8-ohm cabinets for a 4-ohm total load. In that case, just set your head to 4 ohms.
