Borg-Warner Relay / Kickdown Switch / Solenoid / lnstall ... that there were ele'ten different wrring diagrams created by lhe twenty-two different car companies that offered the Borg-Warner overdrive as an option. Wiring ...1 page Collection Of Borg Warner Overdrive Wiring Diagram Download Collection of borg warner overdrive wiring diagram. Click on the image to enlarge, and then save it to your computer by right clicking on the image. Building electrical wiring diagrams show the approximate places and also interconnections of receptacles, lighting, and also long-term electric solutions in a building.

BORG-WARNER OD HARNESS INSTALLATION DIAGRAM INCLUDED IN HARNESS KIT). TO IGNITION SWITCH “ACC” TERMINAL ... SOLENOID. OVERDRIVE. KICKDOWN. SWITCH. 4-WIRE CONNECTION SHOWN ... BORG-WARNER OD HARNESS.

Borg warner overdrive wiring diagram

overdrive wiring - Studebaker Drivers Club Forum overdrive wiring. 02-14-2005, 05:56 PM. I have two wiring diagrams but each one calls for either an overdrive relay or lockout switch. The solenoid has 2 wires coming out of it; one is orange or red and the other is offwhite. The governor wire has been clipped and I have been told I don't need the governor which I have reservations. Wiring Diagram For Studebakeroverdrive The wiring circuit as shown in the diagram (Fig. 9) applies as shown on. Borg Warner Overdrive Wiring. If you are used in Studebakers, GM, and Ford cars and trucks. It gives your The diagram below is for those of you who get a. This item is updated with another wiring diagram for. and later OD's. . Would you clarify the overdrive operation in my. Wiring Diagram For An R10 Borg Warner Overdrive Wiring Diagram For An R10 Borg Warner Overdrive. All the mechanical and electrical tests described in the shop manual have . All the Borg Warner R10 electric overdrives function in the same. The early overdrive transmission is actually a two-speed planetary transmission attached to the rear portion of a standard three-speed.

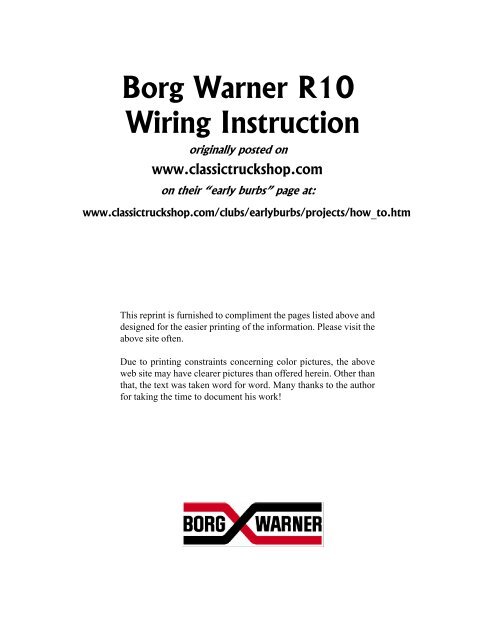

Borg warner overdrive wiring diagram. Borg warner overdrive help - Studebaker Drivers Club Forum 04-29-2021, 02:59 PM. I have hooked up my borg Warner overdrive for my 51 champion. I have no experience operating it. When I ground the governor it activates the solenoid. The cable is pushed in. When I drive the car and let off the gas in second I don't feel a shift change. The Borg-Warner Overdrive Transmission Explained ... The Borg Warner Overdrive Transmission began its life in the 1930s and was last used anywhere in the automotive industry in Ford trucks in 1972. Overdrive was last used in Ford passenger cars in 1967. ... the wiring harness can be fabricated by connecting the terminals and components as shown in the wiring diagram) {see image} While it seems ... PDF Borg Warner R10 Wiring Instruction Borg Warner Overdrive Wiring If you are lucky enough to land your mitts on a T-85N tranny, this page is for you! These were used in Studebakers, GM, and Ford cars and trucks. It gives your truck a semi-automatic tranny setup, and you will have a 3/4 split shift unit. The diagram below is for those of you who get a Borg warner 3 speed with o/d - Hot Rod Forum Butch; et al, here is a webpagwe with a couple different ways to wire this up. Included in the webpage is a link to a scan of a 1965 chiltons manual wiring diagram. Borg Warner T-85N Overdrive Wiring Page

The Borg Warner Overdrive Automobile Instructions Manual THE WARNER AUTOMATIC OVERDRIVE FOREWORD Material contained in this Instruction Manual re~ loles only to P'St-wor Overdrive types (Worner R-lO and R-Il) as used on the following makes 01 cars: Ford M. rauy Frazer Ncub Hudson Packard Kaiser Studebaker Lincoln W illy. While the actual details of construction may diller ... PDF Borg Warner R10 R11 Overdrive Free Report Hello Borg Warner R10 R11 Overdrive Free Report Hello: Thank you for requesting our Borg Warner Overdrive report. This report is meant to assist owners with the operation and maintenance of the Borg Warner R-10 and R-11 Overdrive transmissions. Some history: The original Borg-Warner Corporation was formed in 1928 Nash Transmission The Borg-Warner R10 R11 overdrive transmission was first introduced in the 1934 Chryslers and DeSoto then used by Ford, GM, Hudson, Kaiser-Frazier, Packard, Studebaker and Willys, all total of 11 auto manufactures used this transmission. Ford first used Borg-Warner overdrive's in the Lincoln Zephyr in 1941. Borg Warner Overdrive Wiring Diagram Borg Warner Overdrive Wiring Diagram. 1) Their were 11 different wiring diagrams for the Borg Warner overdrive transmission BESIDES the simple one I provide to you in my overdrive. Wire Harness Borg Warner Overdrive Transmission R10 & R11 Comes with wiring diagram showing how to wire for any electric OD application. Harness.

Wiring Diagram For An R10 Borg Warner Overdrive Wiring Diagram For An R10 Borg Warner Overdrive. if you google R overdrive you will get a lot of help. If you look at the OEM wiring diagram you will see the biggest wire is 16 ga. Also the. 52 56 borg warner R10 Plymouth Overdrive wiring schematic Mopar ( Warner, Borg Warner and others) Overdrive Resource Pics. THE WARNER AUTOMATIC. Overdrive Kickdown Switch | Classic Thunderbird Club ... The wiring diagram in the Electrical Manual is good but it fails to show which is the top or bottom of the switch. The wiring color codes for all three years are identical. The two connectors at the top of the switch near the floor have continuity and provide a circuit from the overdrive relay in the engine compartment through a red wire with a ... Borg-Warner Overdrives - Herm The Overdrive Guy Overdrive was only useable in 2WD. The Borg-Warner unit was a forerunner of the Warn overdrive. Once the Warn unit was introduced in the early 1960's, sales dropped off considerably because of the complex installation. Reconditioned D-20 Borg Warner overdrive assmebly $500. Reconditioned with new bearings, seals, small parts. Upgrading a Borg-Warner Overdrive to 12 volt The electrical parts of the overdrive transmissions were also based on the same working theory, and most share the same basic wiring diagrams. In addition, all of the Borg-Warner overdrives had a governor, relay, kickdown switch, and solenoid. Most of the electrical parts are interchangeable among models.

Overdrive Borg Warner R10 toggle switch wiring - Chevy ... Jul 10, 2014 — Can anyone provide a modified wiring diagram? I have read you could use a floor mounted headlight dimmer switch in line to the solenoid. ( ...20 posts · 07-09-14 08:08 AM - Post#2467799. Hello friends, My '57 Chevy is rebuilt stock drivetrain ...

PDF Borg Warner Overdrive Service Manual - Old Willys Forum the the overdrive lover, B. ELECTRICAL 14. a. While the of just may be considered working of its is by system, This system 01 by a the electrical practically of with there The wiring circuit wiring in the (Fig. S) applies K Willys and Nash (the With relay 1949 that the and to the Ignition switch, on the 1949 switch

Borg Warner Overdrive Wiring Diagram - schematron.org Borg Warner Overdrive Wiring Diagram advance design restoration how to s advance design paint color information this is a pretty extensive listing of the mon colors for everything other than the outside colors sw em od retrofitting on a vintage volvo od retrofitting on a vintage volvo jun r kwas update on going my bw35 automatic to m Before ...

R-10 Borg warner wiring help - The H.A.M.B. Send a PM to 1oldtimer. He is very helpful. With the system that he used you are basically putting it into overdrive when you want to as well as taking it out. It seems pretty straightforward. If you look at the OEM wiring diagram you will see the biggest wire is 16 ga. Also the factory used a 9 amp fuse. Todd

Borg Warner Overdrive Wiring Diagram | autocardesign Borg Warner Overdrive Wiring Diagram - wiring diagram is a simplified okay pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the knack and signal links between the devices. A wiring diagram usually gives information nearly the relative twist and promise of devices and terminals ...

Borg Warner T-85N Overdrive Wiring Borg Warner T-85N Overdrive Wiring If you are lucky enough to land your mitts on a T-85N tranny, this page is for you! These were used in Studebakers, GM, and Ford cars and trucks. It gives your truck a semi-automatic tranny setup, and you will have a 3/4 split shift unit. The diagram below is for

Overdrive Transmission - How to test the Wiring - YouTube There are 3 or 4 switches in the wiring to get your overdrive to engage. If any one of those has failed your overdrive won't engage. In this video we will ru...

Borg-Warner Overdrive Solenoids - Hemmings Most of the other Borg-Warner overdrive units you will find are either R-10 or R-11 units. These could easily be bolted onto the tailshaft of any standard transmission of that era. There were four main electrical parts that activated these overdrive units: the relay, the switch, the solenoid and a governor; however, the solenoid was usually the ...

Wiring Schematics - eWillys David Eilers August 24, 2018 at 2:47 pm. Hi Mark, Here's a list of schematics that includes a couple different Jeepster schematics (near the bottom of the page). However, neither the Jeepster nor the wagon schematics include the overdrive wiring.

Borg Warner Overdrive - Smokstak® Antique Engine Community Good luck to you on this project. You may have to fab some of the items you need to make it work. There is a wiring diagram if you type in R10 Borg warner overdrive on the net bu I dont know if that is the unit you have.

Understanding Borg-Warner's R-10/R-11 Overdrive ... Understanding Borg-Warner's R-10/R-11 Overdrive Transmissions. Borg-Warner overdrive transmissions were first introduced in 1934, originally designed to reduce engine rpms at highway speeds. The early overdrive transmission is actually a two-speed planetary transmission attached to the rear portion of a standard three-speed transmission.

PDF Borg Warner R10 Overhaul Instruction - Deves Technet.com Rebuilding the Borg Warner Overdrive Unit. The rear case removed. This is the center section, and contains the rear bearing, linkage, solenoid mount, and gear assy for the overdrive. The transmission's main shaft is part of this unit, and it takes the place of the rear

PDF Borg-Warner Replacement 12V Relay / Kickdown Switch ... Borg-Warner Relay / Kickdown Switch / Solenoid / Install Instructions: The enclosed overdrive parts are an exact replacement of the original factory Borg Warner overdrive parts. Included, as part of these instructions is a picture-wiring diagram to show you how everything is to be wired. In some applications there may

Wiring Diagram For An R10 Borg Warner Overdrive Wiring Diagram For An R10 Borg Warner Overdrive. All the mechanical and electrical tests described in the shop manual have . All the Borg Warner R10 electric overdrives function in the same. The early overdrive transmission is actually a two-speed planetary transmission attached to the rear portion of a standard three-speed.

Wiring Diagram For Studebakeroverdrive The wiring circuit as shown in the diagram (Fig. 9) applies as shown on. Borg Warner Overdrive Wiring. If you are used in Studebakers, GM, and Ford cars and trucks. It gives your The diagram below is for those of you who get a. This item is updated with another wiring diagram for. and later OD's. . Would you clarify the overdrive operation in my.

overdrive wiring - Studebaker Drivers Club Forum overdrive wiring. 02-14-2005, 05:56 PM. I have two wiring diagrams but each one calls for either an overdrive relay or lockout switch. The solenoid has 2 wires coming out of it; one is orange or red and the other is offwhite. The governor wire has been clipped and I have been told I don't need the governor which I have reservations.
