May 16, 2016 - Ok, Ric send me to a forum. They have schematics for a lot of their guitars, but not for mine. Can anyone direct me to a wiring diagram for a 2015...

Rickenbacker 4003 wiring diagram

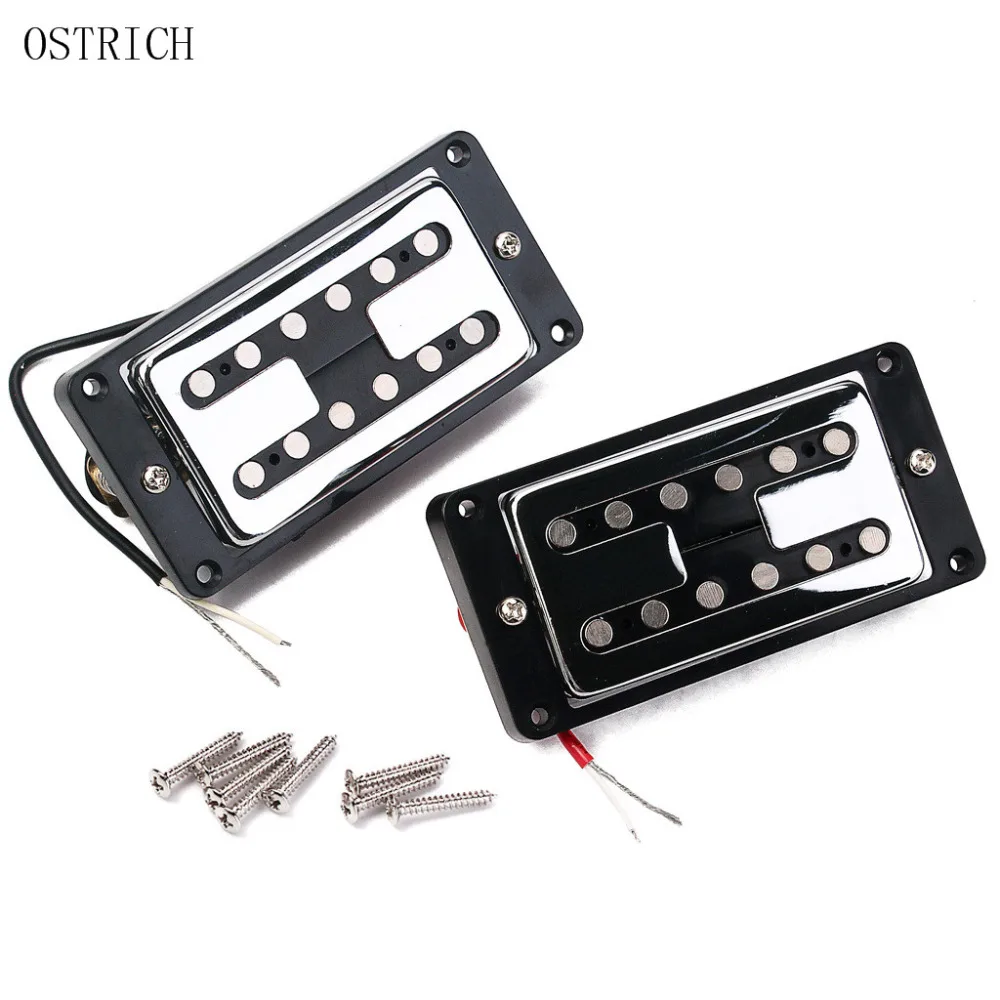

Find many great new & used options and get the best deals for Rickenbacker 4003s Wiring Harness With Vintage Tone Option at the best online prices at eBay! Free shipping for many products! Wiring Diagram Rickenbacker 4001 Bass - Schematics And Wiring Diagrams inside Rickenbacker 4003 Wiring Diagram, image size 799 X 577 px, and to view image details please click the image.. Click here to view the schematic diagram for this model Rickenbacker 4003 wiring diagram. 920D Custom Shop Wiring Harness for Rickenbacker 4000 Series Bass Guitar This listing is for a new 920D Custom Shop wiring harness with premium components that is based on the Duncan recommended diagram for this pickup set. Components Switchcraft 3 Way Switch CTS 450G Series 250K Solid Shaft ...

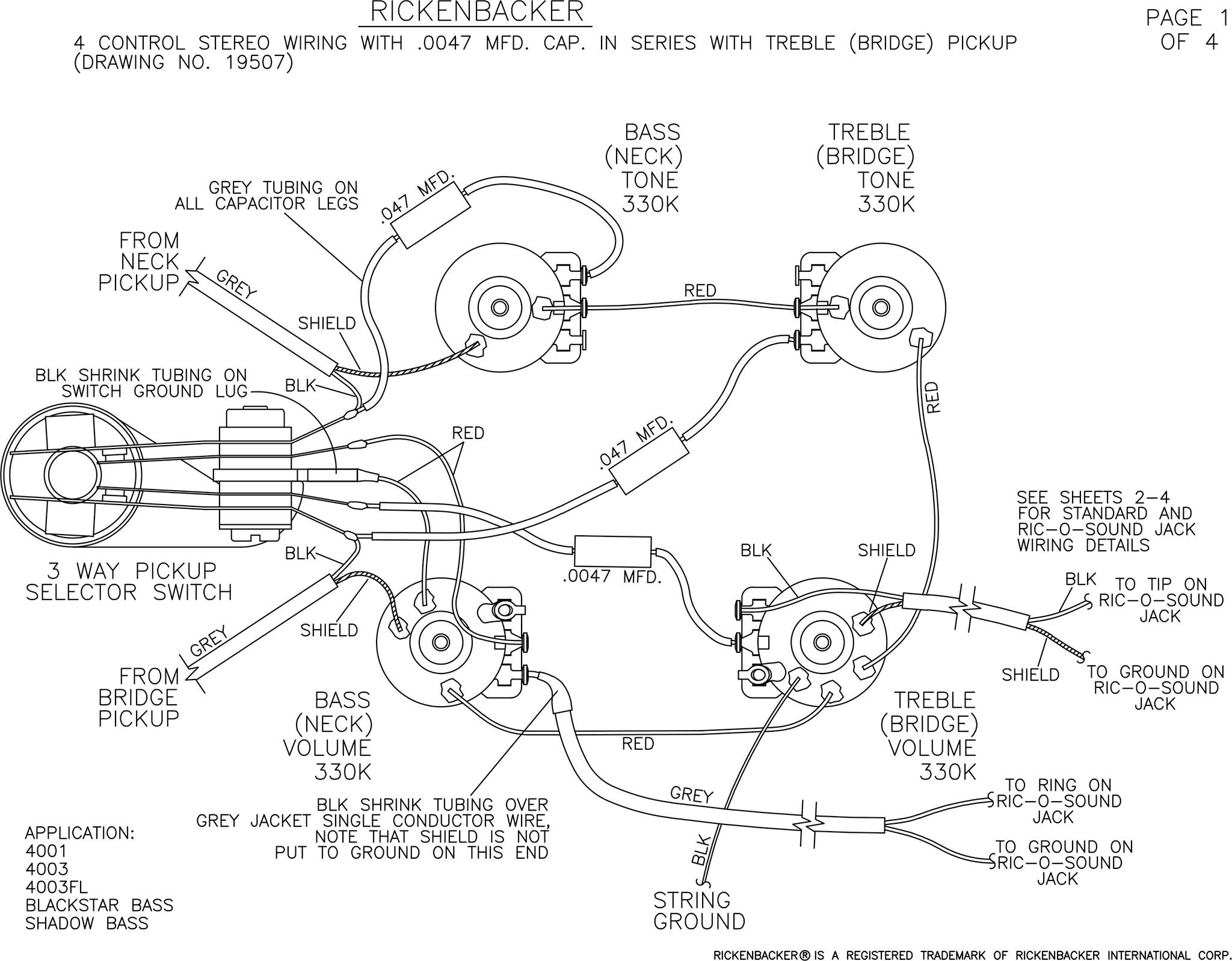

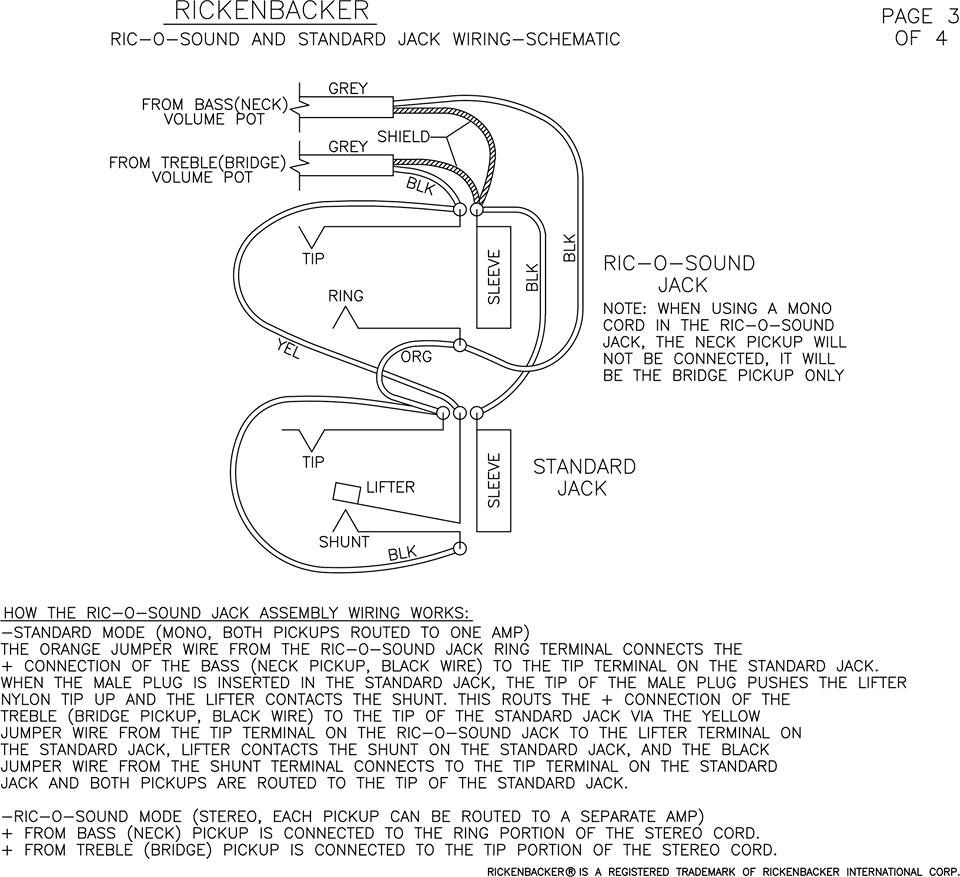

Rickenbacker 4003 wiring diagram. Rickenbacker 4003 wiring diagram 13.03.2019 13.03.2019 0 comments on rickenbacker 4003 wiring diagram rickenbacker wiring diagram here you are at our site at this time were pleased to announce we have found an awfully interesting content to be. This post published on Sunday, October 31st, 2021. Read other post: 12 Volt Relay Wiring Diagram. July 14, 2012 - This is in full humbucker mode as the diagram suggests. When you get this right, you can play with tapping coils, something I haven't bothered with. In hb mode, it will be noiseless. If you still have hiss, I would reverse the single coil pickup wires. Rickenbacker - 08 4003, Rickenbacker - ... Rickenbacker 4003 Wiring. I have "Joey's" wiring diagram as well as the Ric factory schematic. As far as I can tell everything's fine, but I guess I must have an earthing. Genuine Rickenbacker 4 Control Wiring Harness w/Tone Circuit. Push/Pull Pot operates tone circuit. 2-Vol 2-Tone way selector switch. Here is a collection of wiring diagrams for a Rickenbacker 4003 bass complete with Rick-O-Sound (some are drawn by me, and the rest are by Bryan Lilje.

Rickenbacker Wiring Diagram - Page 2 - Wiring Diagram And Schematics Rickenbacker Wiring Diagram Schematic Diagrams Source · Unique Rickenbacker Wiring Diagram Concept Update And At Rickenbacker Wiring Diagram. Wiring diagrams and mounting hardware are provided to facilitate installation. RIC chrome pickup covers are not included nor provided. Welcome to Rickenbacker.com 11/20/2021: Component Diagrams: Bass Pickguards Guitar Pickguards Vintage Guitar Pickguards Rickresource Rickenbacker Forum View Topic 4003 Wiring Harness. Wiring diagram of a rickenbacker bass ric diagrams talkbass com basslines electric guitar pickup 4001 jakub s house rock photos facebook 920d cliff burton 4003 vintage tone selector availability 1974 1975 1976 and plans harness for rickresource forum view 3s complete 1973 4003s question 2009 c64 about artec custom b rick o sound ... Rickenbacker 4003 wiring schematic. The rickresource has threads asking ab. Wiring diagram rickenbacker 4001 bass schematics and wiring diagrams inside rickenbacker 4003 wiring diagram image size 799 x 577 px and to view image details please click the image. Here is a picture gallery about ...

July 13, 2017 - Board index ‹ RRF Rickenbacker Forums 2000-2021 ‹ Rickenbacker Basses: by Joey Vasco & Tony Cabibe ... Wiring diagram again. Vintage, Modern, V & C series, Fretless, Signature & Special Editions ... Wiring diagram again. ... Anyone know how I can get the diagram from Joey's Bassnotes? I've rewired my 84 4003 ... Rickenbacker 4003 Wiring Diagram : Passive Bass Guitar Wiring Diagram - Following in the footsteps of its predecessor, the rickenbacker 4003 bass guitar offers updates to the 4001 just as the 4001 upgraded the 4000.. All parts are genuine rickenbacker unless noted otherwise. This classic rickenbacker 4003 bass in walnut showcases the famous ... I've recently picked up a faker with dodgy wiring and am trying to find a Rick wiring diagram. I've found the schematic on the Rick website but I can't read schematics. ... Rickenbacker 4003 wiring diagram Rickenbacker 4003 wiring diagram. By Delberthot, March 18, 2014 in Repairs and Technical. Share More sharing options... Followers 0. Push-pulls are almost always DPDT on/on switches and can be used to do some cool things like this mod for a three-pickup Ric guitar that switches between modern and vintage sounds, pioneered by iiipopes of this and other forums. Nov 19, 2011 #6. sloppy_phil. Aug 21, 2011. Toronto, ON, Canada.
